CM8600 Dual System Refrigerant Charging Machine 380V 50HZ
-
Evidenziare
dual system refrigerant charging machine
,380V refrigerant charging station
,50HZ refrigerant charging equipment
-
CondizioneNuovo
-
Industria applicabileStabilimento di produzione
-
Peso (kg)300
-
Posizione dello showroomNessuno
-
video di ispezione in uscitaFornito
-
Rapporto di prova della macchinaNon Disponibile
-
Garanzia dei componenti principali1 anno
-
Componenti fondamentaliMotore, Pompa
-
TipoCompressore
-
Garanzia1 anno
-
Servizio post-vendita fornitoIngegneri disponibili per il servizio di macchine all'estero
-
Risoluzione0.1g
-
Voltaggio380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modello n.Sistema di carica refrigerante CM8600 R32
-
precisione± 0,5%
-
grado di vuoto5Pa~10Pa
-
velocità di ricarica60~260 g/s
-
ApplicazioneClimatizzatore, distributore d'acqua, congelatore, frigorifero
-
PortShanghai Ningbo Tianjin Qingdao
-
Luogo di origineJiangsu, Cina
-
MarcaCM
-
CertificazioneCE, ATEX
-
Numero di modelloCM8600
-
Quantità di ordine minimo1 unità
-
Prezzo$20,400.00/units 1-2 units
-
Imballaggi particolaricustodia in legno, pallet per la macchina di ricarica dei refrigeranti CM8600
-
Capacità di alimentazione50 Unità al mese
CM8600 Dual System Refrigerant Charging Machine 380V 50HZ
Dual System Gas Recharge Vacuum Equipment
Product Specifications
| Condition | New |
|---|---|
| Applicable Industries | Manufacturing Plant |
| Weight | 300 KG |
| Video Outgoing Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Description
The CM8600 Dual System Refrigerant Charging Machine is specially designed for high-speed refrigerant charging in production line environments. This industrial-grade equipment combines precision, speed, and versatility for manufacturing applications involving various refrigeration systems.
Key Features
- CNC Technology: Ensures accurate data processing and simplified operation
- Multi-Refrigerant Compatibility: Works with R134a, R22, R407C, R410A (custom options available for R600a, R290, R32)
- Advanced Control System: Siemens PLC with color touch screen interface
- High-Precision Sensors: Flow measurement resolution of 0.1g
- Wonfulay Pneumatic Booster: Maintains stable pressure for large charging quantities
- Large Capacity: Continuous charging up to 99999g at rates of 60g~260g
- Smart Monitoring: Automatic low refrigerant alerts
- Adjustable Parameters: Customizable vacuum time and leak inspection duration
- High-Speed Operation: Wonfulay filling gun enhances charging speed
- Powerful Vacuum: Achieves 5~10Pa vacuum levels quickly
- Multi-Functional: Combines vacuum, leak inspection, charging, and refrigerant recovery
- Exceptional Accuracy: Repeat filling precision ≤ ±0.5%
- Mobility: Designed for easy movement and operation
Product Images
Front View
Control Panel
Side View
Charging System
Component Detail
Pneumatic System
Filling Gun
Vacuum Pump
Flow Sensor

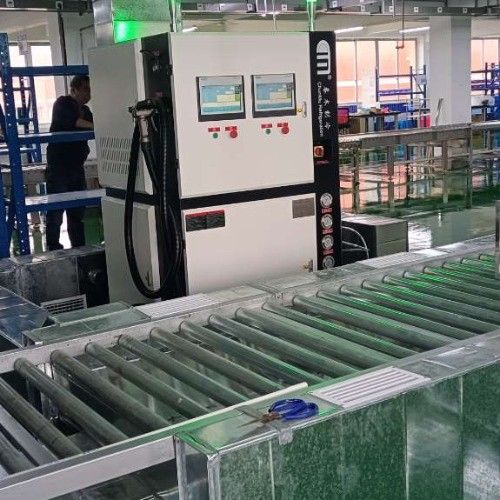

Assembly Line Setup
