R134A refrigerant recharge system
,R410A refrigerant charging station
,automotive refrigerant recharge system with warranty
-
CondizioneNuovo
-
Industrie applicabiliImpianto di produzione
-
Peso (kg)300
-
Posizione dello showroomNessuno
-
Video-ispezione in uscitaFornito
-
Machinery Test ReportNot Available
-
Garanzia di componenti principali1 anno
-
componenti principaliMotore, pompa
-
TipoCompressore
-
Garanzia1 anno
-
Servizio post-vendita fornitoIngegneri disponibili per servizi macchinari all'estero
-
Risoluzione0,1 g
-
Voltaggio380 V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modello nSistema di ricarica del refrigerante CM8600 R32
-
Precisione± 0,5%
-
Grado sottovuoto5pa ~ 10pa
-
velocità di ricarica60 ~ 260 g/s
-
ApplicazioneCondizionatore d'aria, distributore d'acqua, congelatore, frigorifero
-
PortShanghai Ningbo Tianjin Qingdao
-
Luogo di origineJiangsu, Cina
-
MarcaCM
-
CertificazioneCE, ATEX
-
Numero di modelloCM8600
-
Quantità di ordine minimo1 unità
-
Prezzo$20,400.00/units 1-2 units
-
Imballaggi particolariCustodia in legno, pallet per la macchina di ricarica di riempimento del refrigerante CM8600
-
Capacità di alimentazione50 unità/unità al mese
Auto R134A R410A Refrigerant Recharge System
Auto R134A R410A Refrigerant Recharge System
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video Outgoing-Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant Compatibility | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Overview
CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for high-speed refrigerant charging in production lines. It features exceptional charging speed, high accuracy, and multiple functions. Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific requirements.
The CM86 refrigerant charging machine is specially designed for high-speed refrigerant charging in production lines. It features exceptional charging speed, high accuracy, and multiple functions. Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific requirements.
Key Features
- CNC technology enables precise data processing with accurate and easy operation
- Charging/filling capability for liquid gases including R134a, R22, R407C, R410A (customizable for R600a, R290, R32)
- Siemens PLC with colorful touch screen control system
- High-accuracy flow sensors provide resolution of 1~0.1g
- Wonfulay pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging capacity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum of 5~10Pa
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement
Product Images

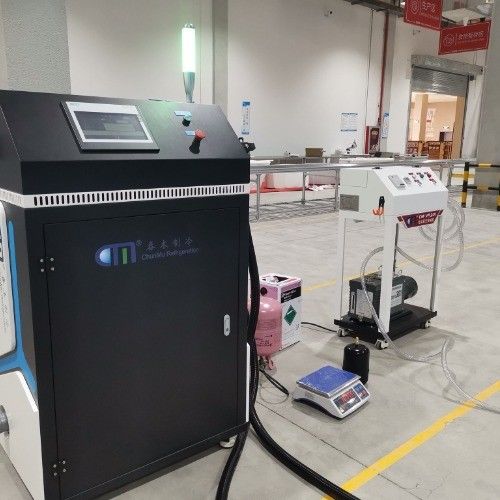

Front View
Control Panel
Side View
Components
Filling Interface
Internal Components
Pneumatic System
Vacuum Pump
